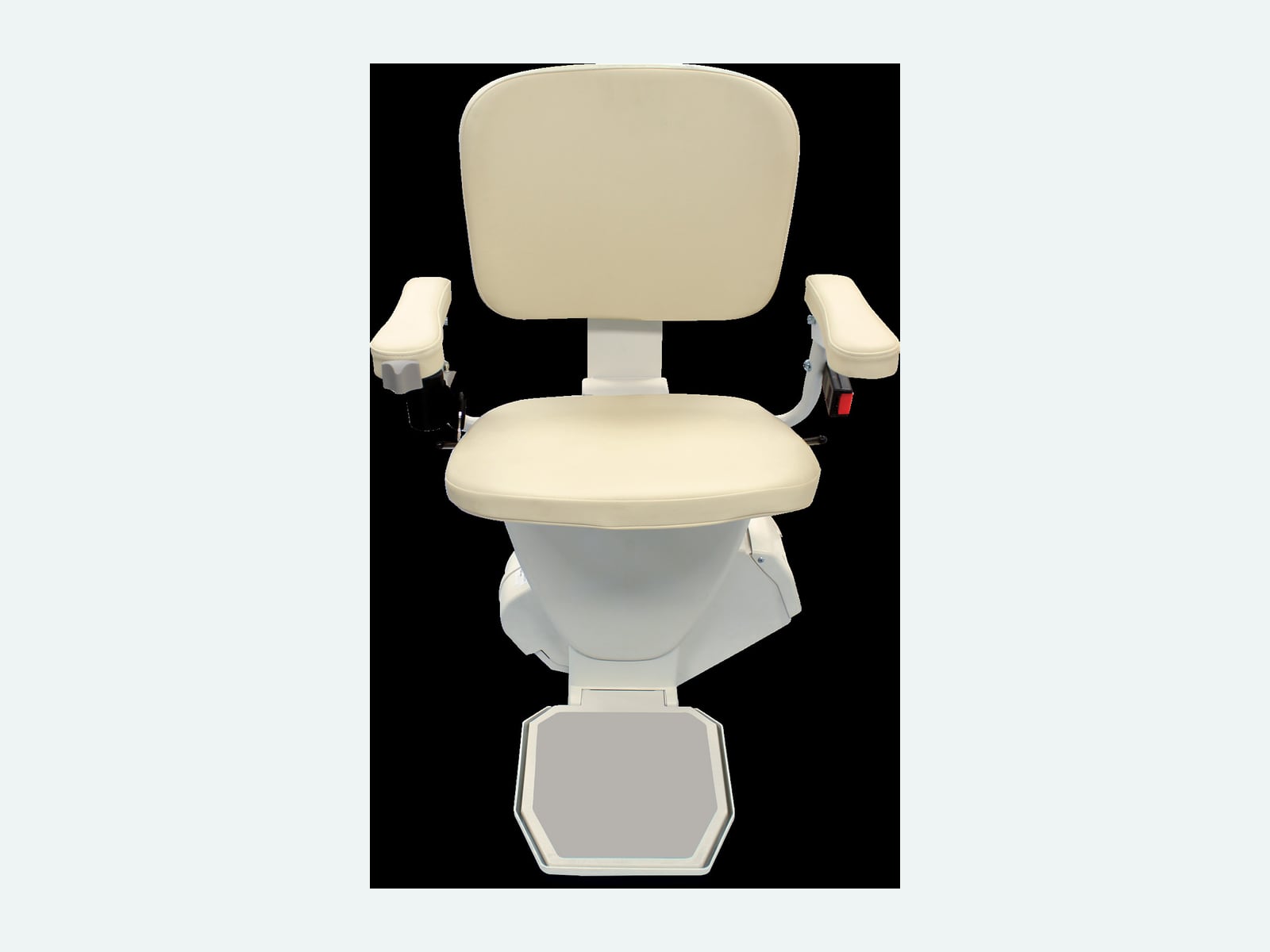

Rave 2 Straight Stair Lift
The most compact straight stairlift on the market — folds to just 11 inches.
The Rave 2 is the workhorse of straight staircases. Folded, the whole unit occupies a little over 11 inches, so the staircase stays genuinely usable for everyone else in the house. Batteries carry up to 60 cycles during a power outage — which is exactly when getting downstairs matters most — and the seat swivels 90 degrees at the top of the rail so you step off onto the landing rather than the stairs. A folding rail option clears doorways or obstructions at the bottom of the run.
- Folds to just over 11 inches — the most compact on the market
- Up to 60 cycles of travel during a power outage
- 90° seat swivel at the top for a safe exit onto the landing
- Integrated centrifugal overspeed brake and swivel interlock
- Chassis and footrest obstruction sensors
- Two call/send remotes, right- or left-hand controls
- Optional folding rail clears doorways at the bottom of the stairs
- Optional key-lock prevents unauthorized use
Specifications
- Maximum capacity
- 350 lb
- Minimum folded width
- 11 in (13.75 in with folding rail)
- Lift / lower speed
- 20 ft/min
- Seat back height
- 16.6 in min / 18.1 in max
- Seat bottom
- 14.5 × 18.6 in
- Overall seat depth
- 16.5 in
- Between armrests
- 19.5 in
- Power
- Battery — up to 60 cycles during a power outage
- Certification
- Meets ASME A18.1 · ETL Listed #3148125
- Warranty
- 2 yr drive train · 2 yr parts · 1 yr battery
- Origin
- Made in the USA
